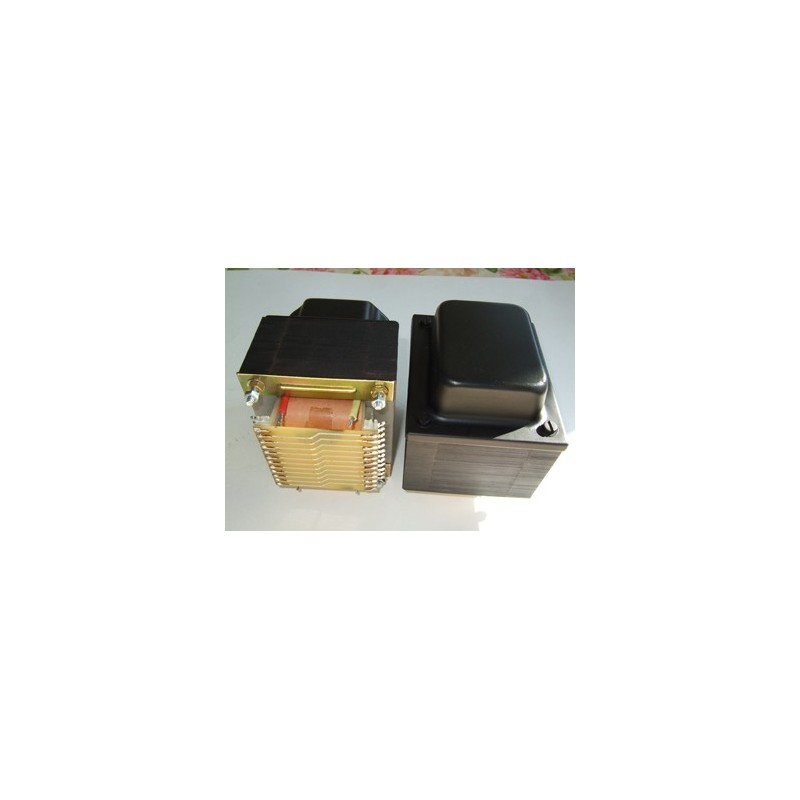

TRANSFO DE SORTIE type 499A/1 300b

TRANSFOS DE SORTIE type 499A/1
POUR 300B - 6B4G - 6L6 - KT88 - KT66 - 2A3 - R120 (capot noir).

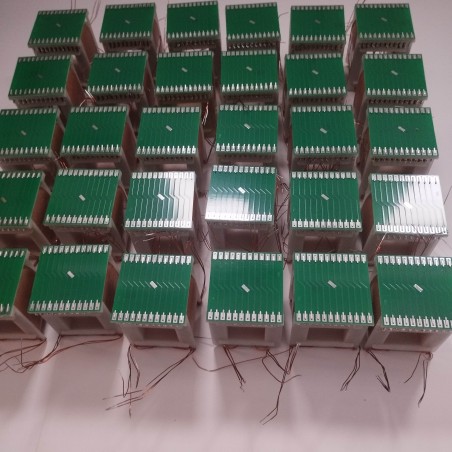

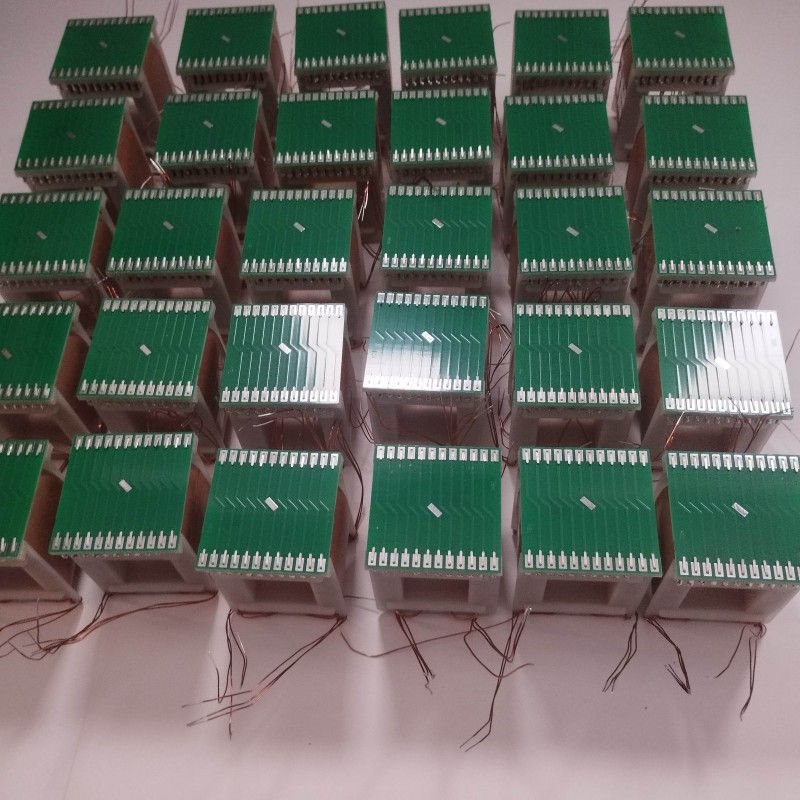

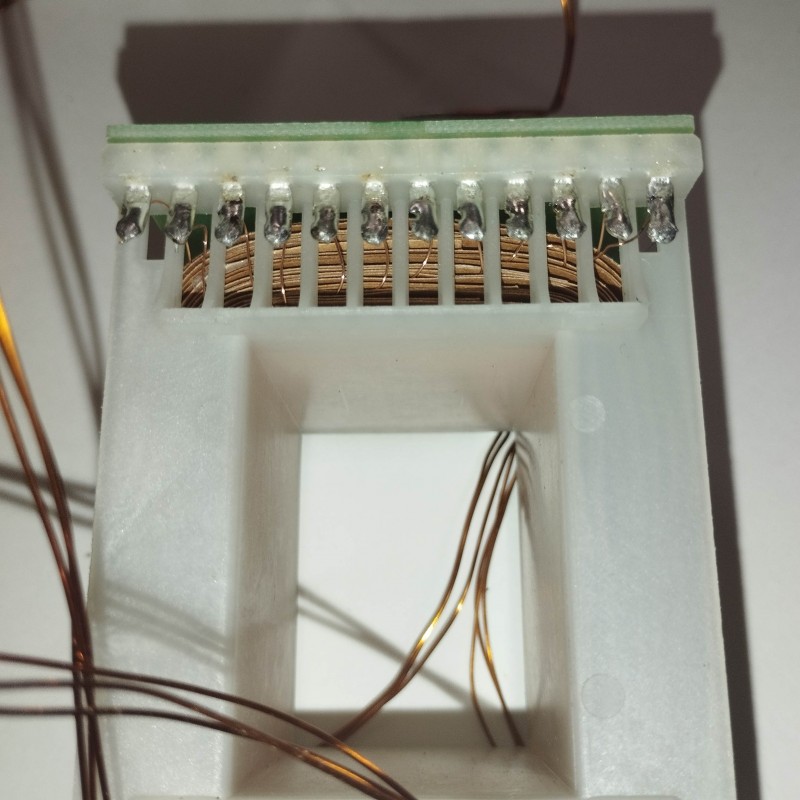

Enroulements multi-couches (18 couches sandwich) tôles à grains orientées.
Montage single. Classe A à 100watts
2500 Ohms.Sortie 8 ohms. montée 3,5μs. montage ultra linèaire - différentiel. 110x96x80mm .mesures à 1w Bande passante avec CR 3dB 20hz-0.2dB 20khz 0.1dB Self 6.5/7H Résistance 80ohms
Destinataire :
* Champs requis
TRANSFO DE SORTIE type 499A/1 300b
TRANSFOS DE SORTIE type 499A/1
POUR 300B - 6B4G - 6L6 - KT88 - KT66 - 2A3 - R120 (capot noir).
Enroulements multi-couches (18 couches sandwich) tôles à grains orientées.
Montage single. Classe A à 100watts
2500 Ohms.Sortie 8 ohms. montée 3,5μs. montage ultra linèaire - différentiel. 110x96x80mm .mesures à 1w Bande passante avec CR 3dB 20hz-0.2dB 20khz 0.1dB Self 6.5/7H Résistance 80ohms
