Transfo type 2004/2/2A 2450 ohms/8 ohms

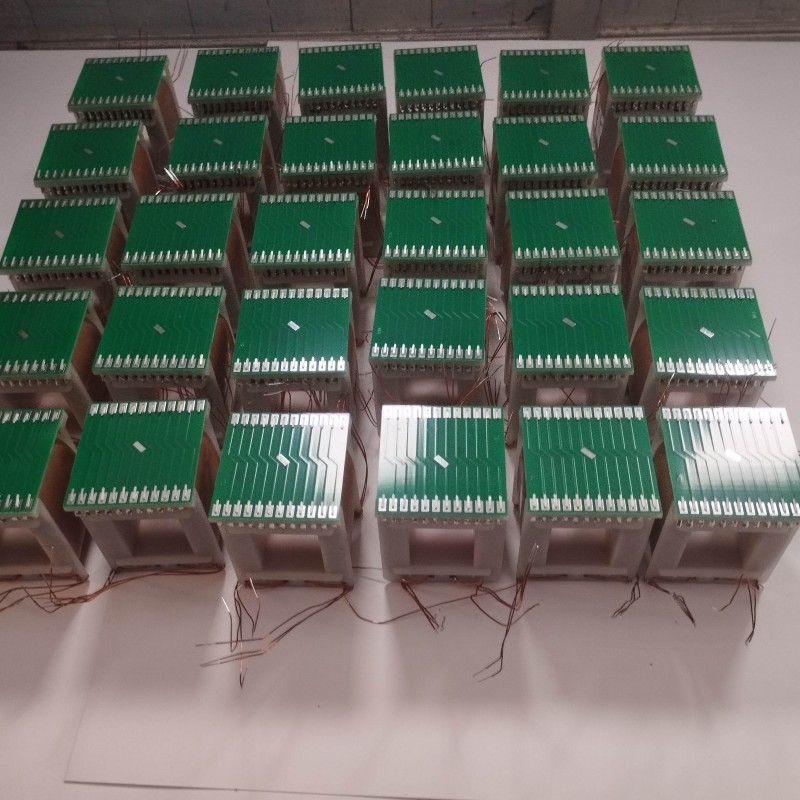

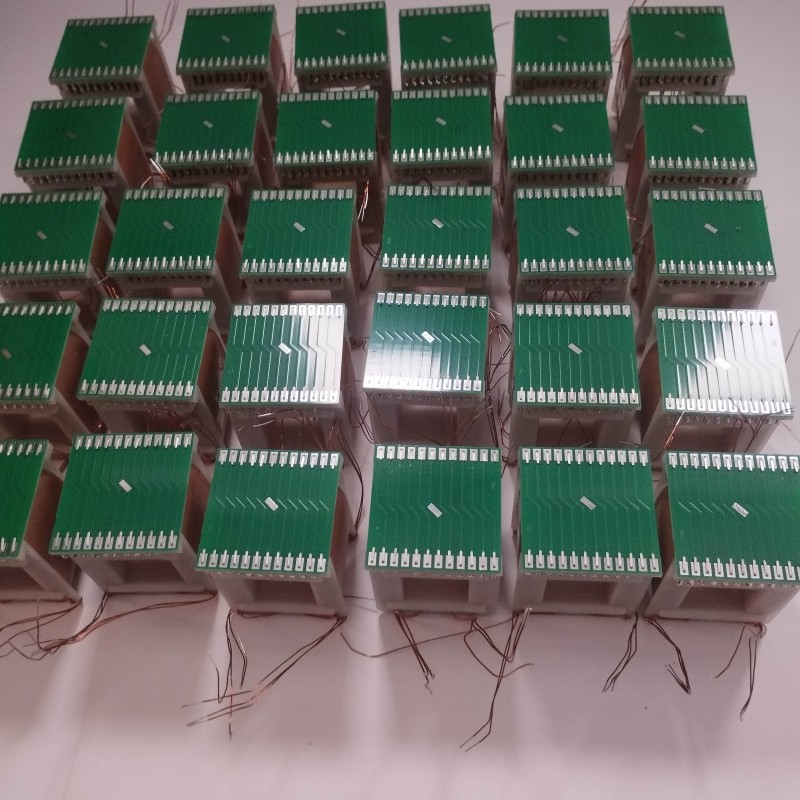

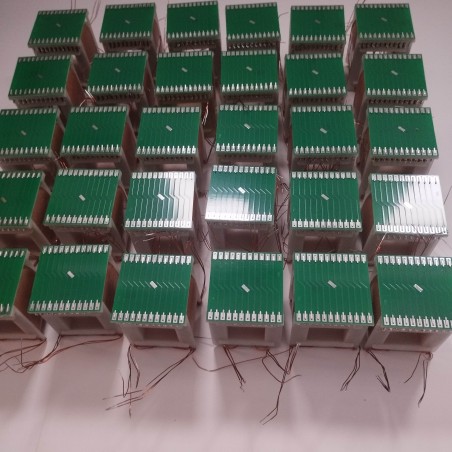

TRANSFOS DE SORTIE type 2004/2/2A

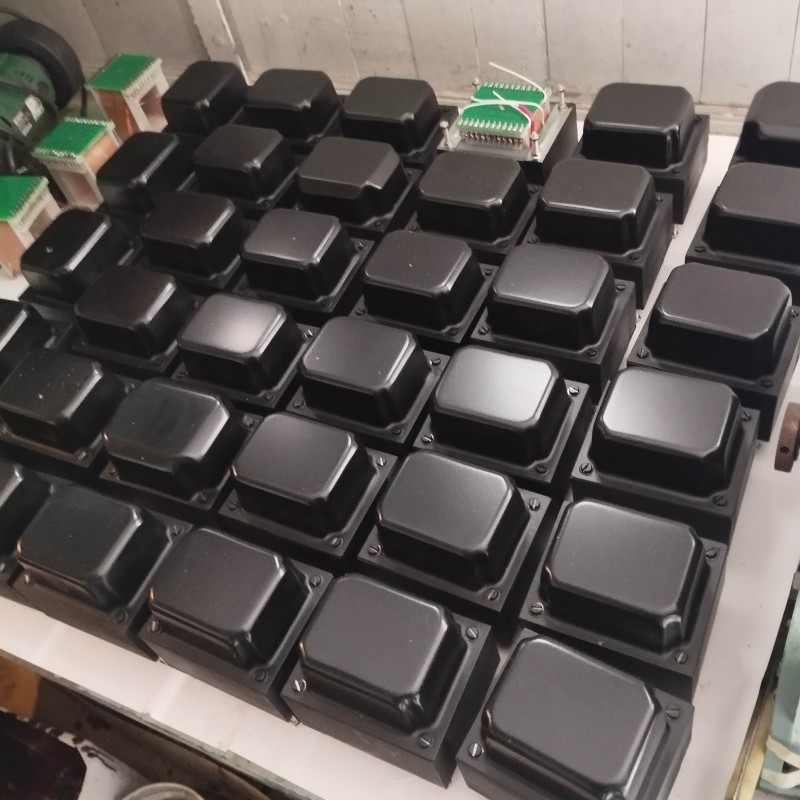

POUR AMPLIS A TUBES (capot noir).

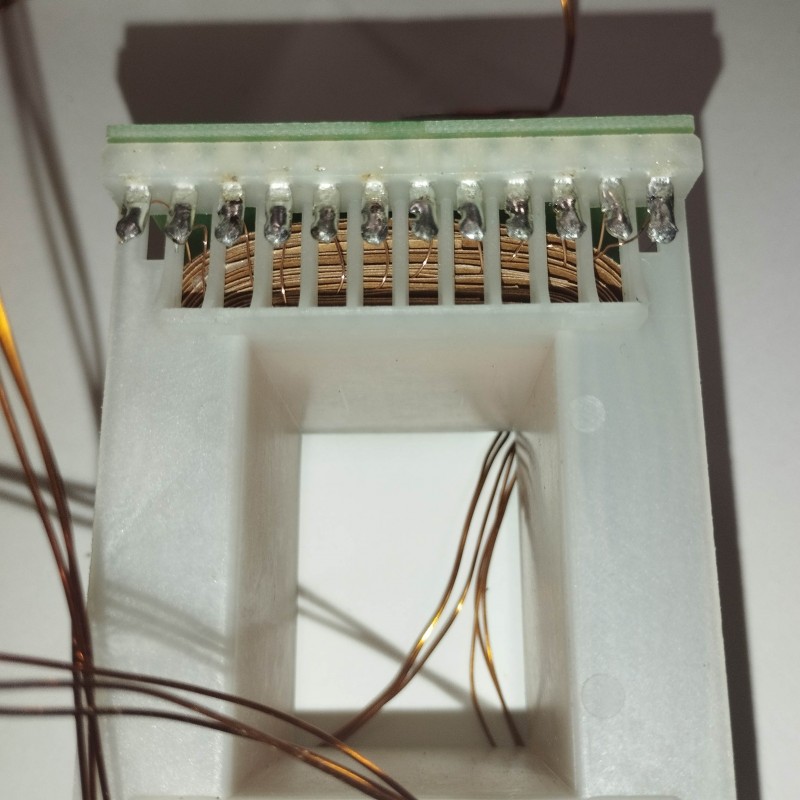

Enroulements multi-couches (18 couches sandwich) tôles à grains orientées. 300B/2A3/PTT4 ou autre
Montage single. Classe A saturation tôles 100watts
2450 Ohms.Sortie 8 ohms. montée 4µs. montage ultra linèaire - différentiel Self 11 H Résistance 170 ohms
intensité max 150mA
dimensions 80x96xH115 m/m
poids 3kg3
